Is 1060 aluminum strip suitable for cable armoring?
Yes. It has excellent flexibility, corrosion resistance, and cost-effectiveness, making it widely used in cable armoring systems.
High-purity 1060 aluminum strip (≥99.6%) ensures excellent electrical conductivity and formability, making it an ideal choice for MC cables and optical cable shielding.
1060 aluminum strip is a commercially pure aluminum material with aluminum content ≥99.6%. Due to its excellent ductility, corrosion resistance, and electrical conductivity, it is widely used in cable armoring systems.
1060 armoring aluminum strip forms a protective metal layer, which can prevent mechanical damage, moisture ingress, and electromagnetic interference in cable systems.
| Item | Specification |
| Alloy | 1060 Aluminum Alloy |
| Temper | O |
| Thickness | 0.5 – 0.9 mm (standard for cable armoring applications) |
| Width | 9.5 / 12.7 / 19 / 25.4 mm (customizable according to cable design) |
| Coil Inner Diameter | 300 mm / 400 mm / 505 mm (custom options available) |
| Coil Weight | 500 – 2000 kg per coil (customizable) |
| Surface Finish | Bright, mill finish, anodized |
| Edge Type | Slit / rounded edge |
| Thickness | Tolerance (mm) | Width (mm) | Width Tolerance (mm) |
| 0.50 | ±0.02 | 9.5 | ±0.10 |
| 0.60 | 12.7 | ||
| 0.65 | |||
| 0.65 | 19 | ||
| 0.75 | |||
| 0.75 | 25.4 | ||
| 0.80 |
| Element | Content (%) |
| Aluminum (Al) | ≥ 99.60 |
| Iron (Fe) | ≤ 0.35 |
| Silicon (Si) | ≤ 0.25 |
| Copper (Cu) | ≤ 0.05 |
| Manganese (Mn) | ≤ 0.03 |
| Magnesium (Mg) | ≤ 0.03 |
| Zinc (Zn) | ≤ 0.05 |
| Others | ≤ 0.03 each |

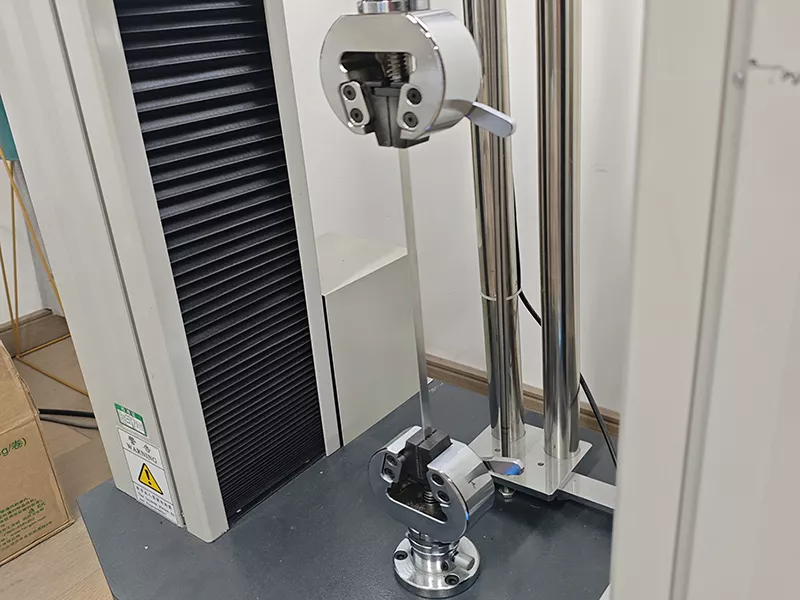

| Property | Value |
| Alloy | 1060 |
| Temper | O |
| Tensile Strength | 70–110 MPa |
| Yield Strength | ≥35 MPa |
| Elongation | ≥20–30% |
| Hardness | Low |
| Electrical Conductivity | ≥61% IACS |
| Ductility | Excellent |
| Typical Application | Light Armoring |
1060 aluminum strip for cable armoring is manufactured under a fully controlled industrial production system, ensuring stable mechanical properties, high surface quality, and consistent performance for cable protection applications.
All production steps are strictly aligned with international standards such as ASTM and EN, ensuring reliable performance in power cable armoring, transformer systems, and industrial protection applications.

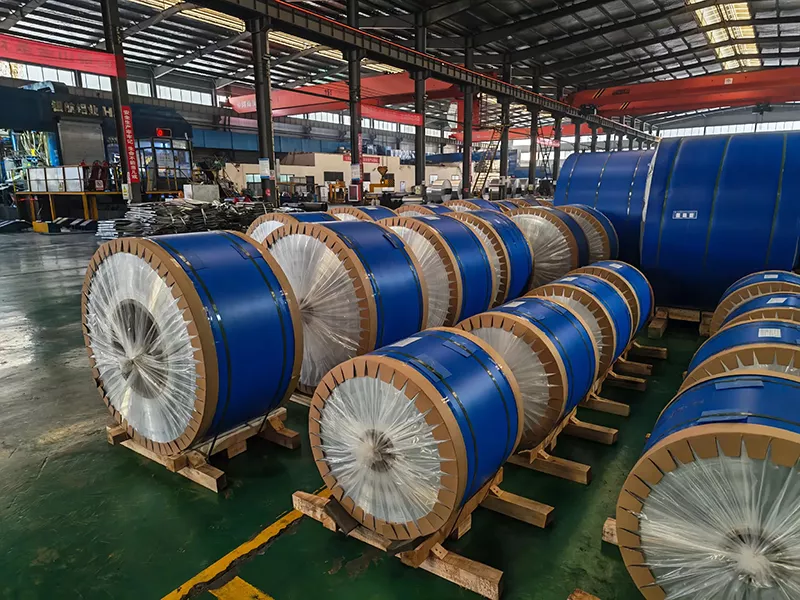

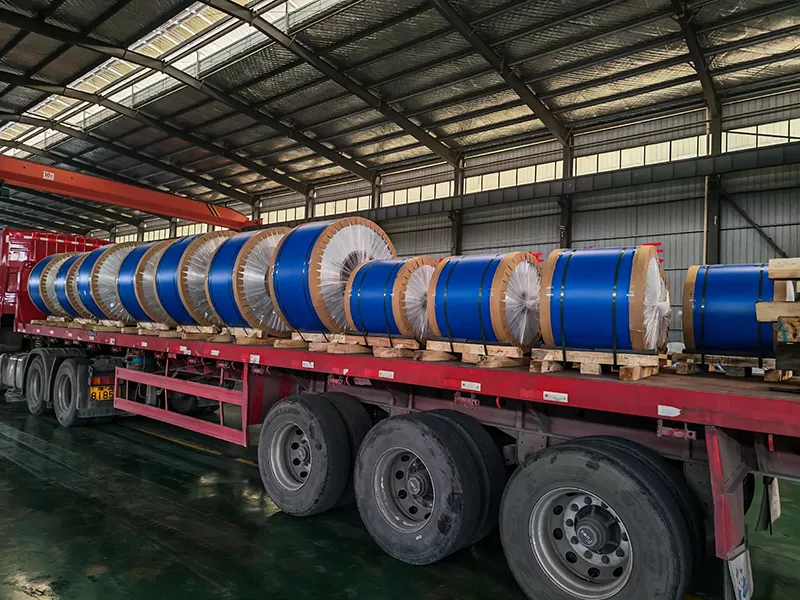

1060 aluminum strip for cable armoring is securely packed and delivered under strict export standards, ensuring full protection against moisture, oxidation, and mechanical damage during long-distance transportation.
All packaging and logistics processes are designed to meet international export requirements for cable armoring materials, ensuring safe arrival and ready-to-use condition for transformer, power cable, and industrial applications worldwide.
Selecting the right aluminum strip alloy for cable armoring is critical to ensure optimal balance between conductivity, mechanical strength, corrosion resistance, and cost efficiency. The most commonly used alloys include 1060, 5052, and 5154 aluminum strips, each designed for different cable environments and performance requirements.
| Alloy | Main Features | Typical Applications | Relative Cost |
| 1060 | High-purity aluminum (≥99.6%), excellent ductility, superior electrical conductivity, easy forming and low mechanical strength. | Low-voltage power cables, standard cable armoring, indoor electrical systems. | Economical (Base level) |
| 5052 | Aluminum-magnesium alloy with improved tensile strength, excellent corrosion resistance, suitable for harsh environments. | Underground cables, marine environments, medium-to-high voltage power cable armoring. | Medium to high |
| 5154 | Higher magnesium content than 5052, enhanced mechanical strength and fatigue resistance, excellent durability in extreme environments. | Offshore cables, high-performance power transmission systems, industrial heavy-duty applications. | High |
Conclusion: 1060 is ideal for cost-sensitive applications, 5052 offers a balanced performance for most industrial cable systems, while 5154 is recommended for high-strength and harsh environment cable armoring requirements.
Is 1060 aluminum strip suitable for cable armoring?
Yes. It has excellent flexibility, corrosion resistance, and cost-effectiveness, making it widely used in cable armoring systems.
What is the difference between 1060 aluminum strip and 5052 aluminum strip?
1060 is pure aluminum with better electrical conductivity, while 5052 contains magnesium alloy, offering higher strength and improved corrosion resistance.
Which aluminum alloy is best for cable armoring?
1060 is ideal for general low-voltage cables due to its high ductility and low cost, while 5052 is recommended for high-corrosion or high-mechanical-stress environments such as marine and underground applications.
Can aluminum strip replace steel strip in cable armoring?
Yes, especially for single-core AC cables. Steel can cause eddy current losses, while aluminum is non-magnetic, lightweight, and more cost-efficient.
